Halle Cressier
| Category | Small Scale Projects |
|---|---|
| Year | 2025 |
| Country | Portugal |
| Organization | Serralharia Cunha |
| Author | Vitor Fernandes |
| Place of construction | Suiça |
| Tags | Trimble Connect ExtensionsTekla StructuresSteel |

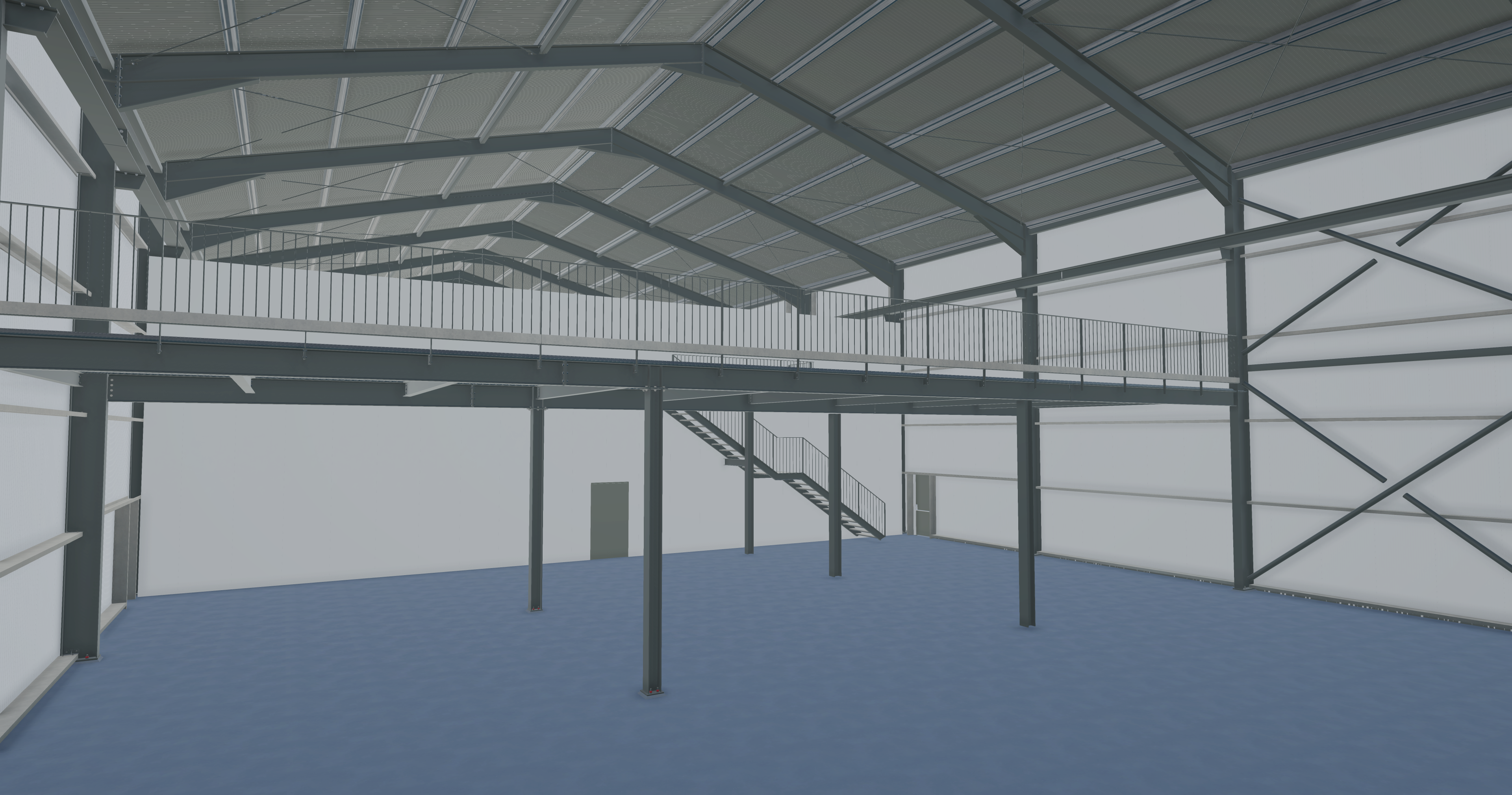

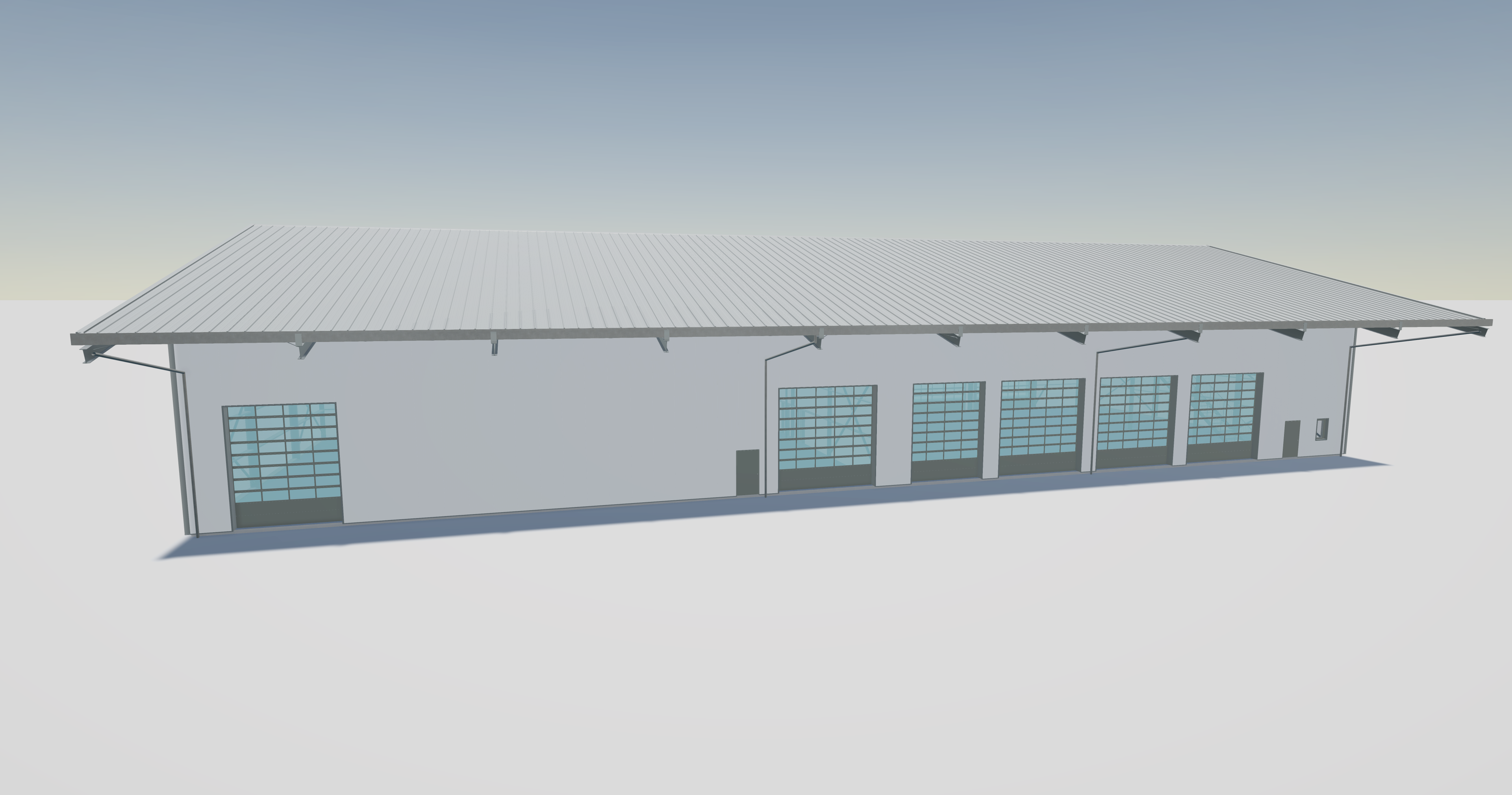

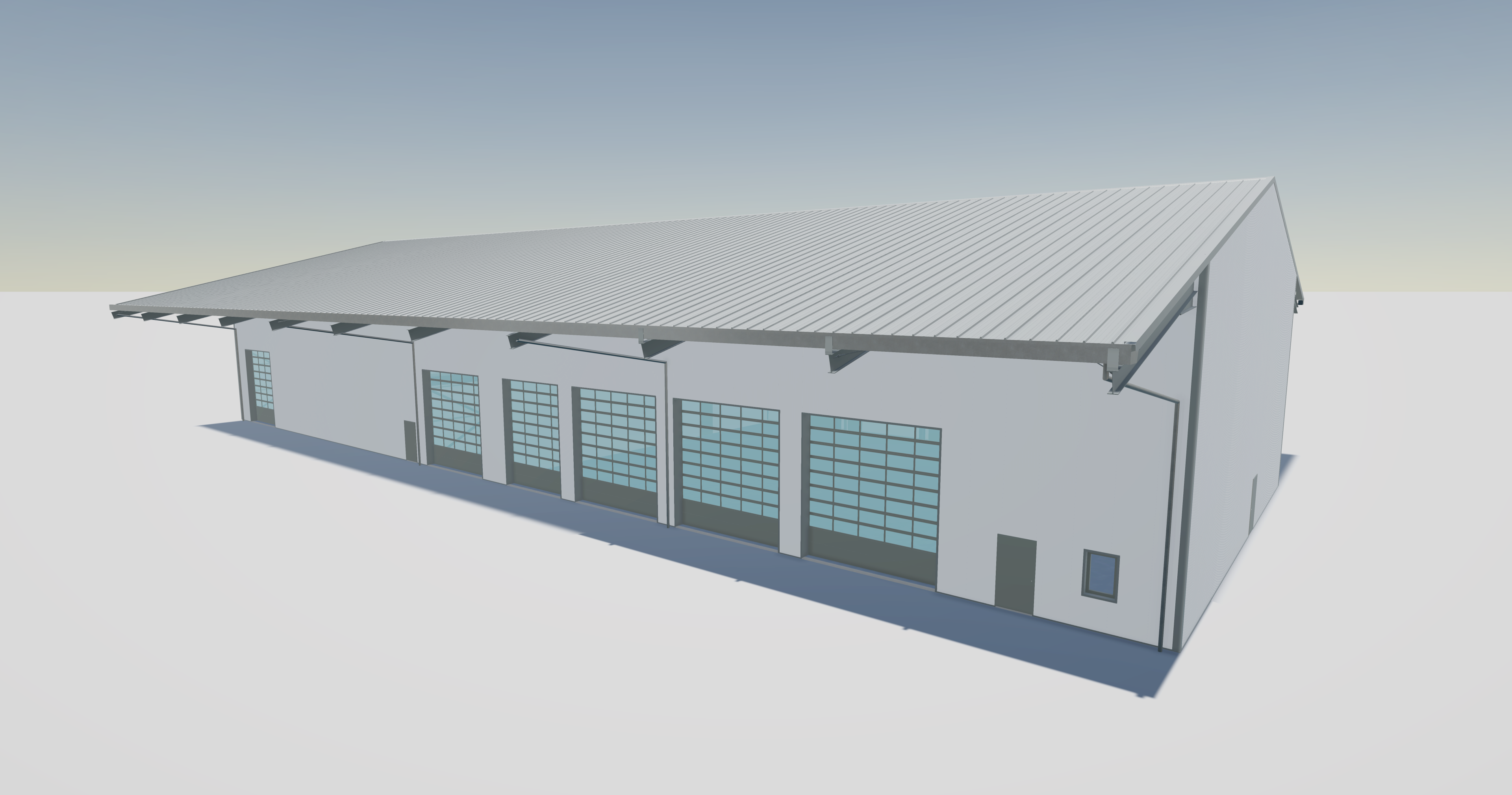

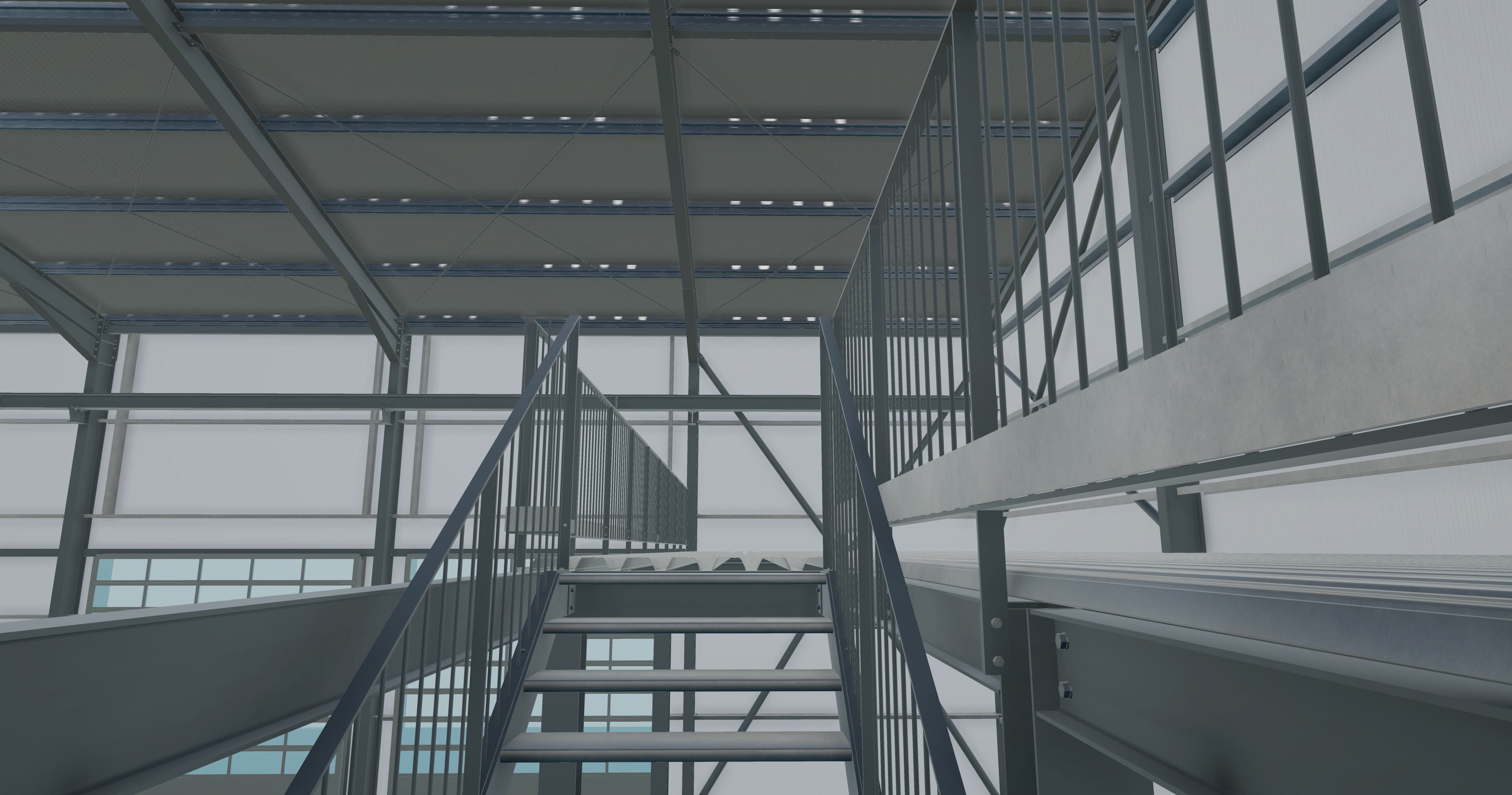

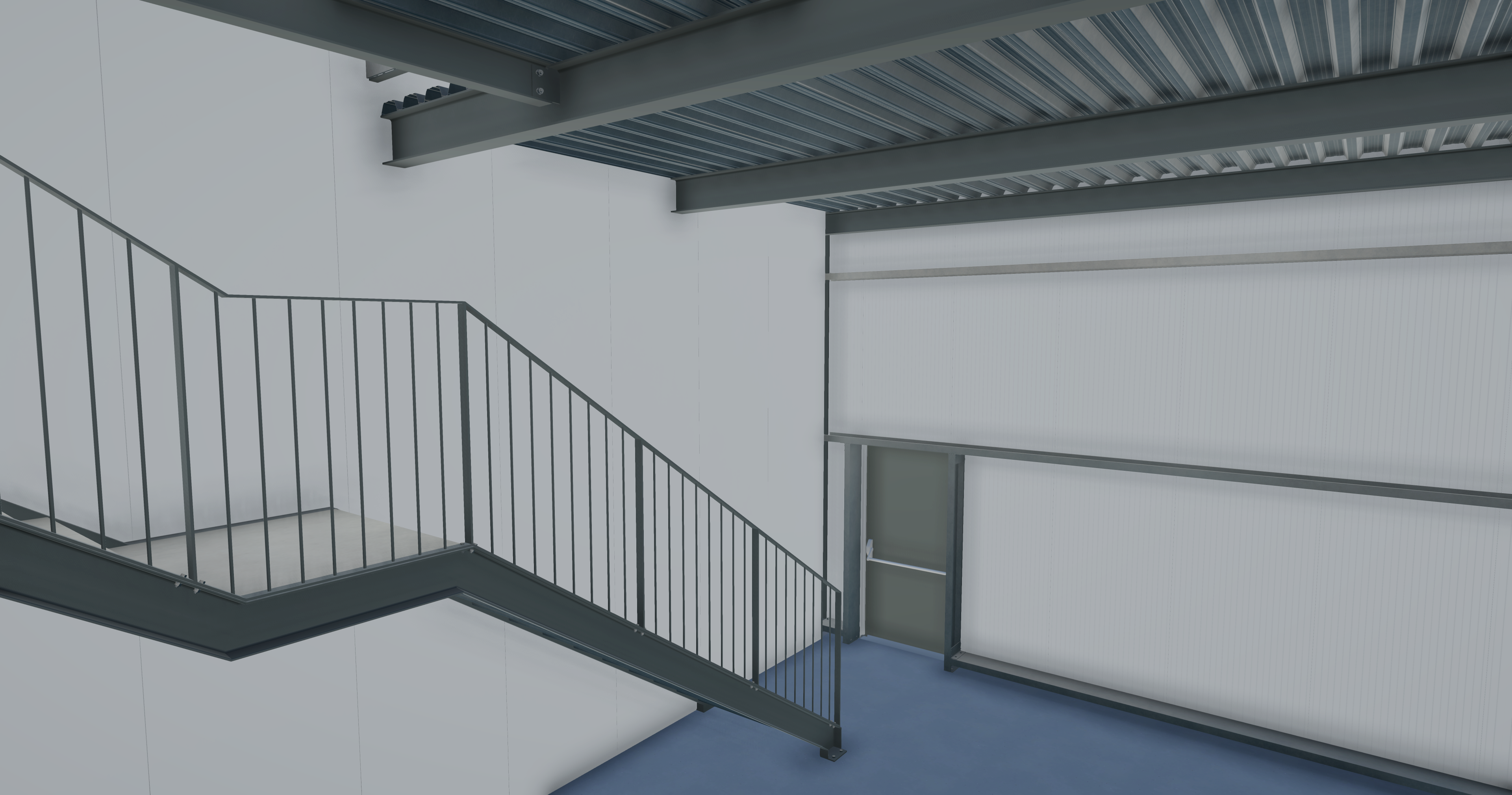

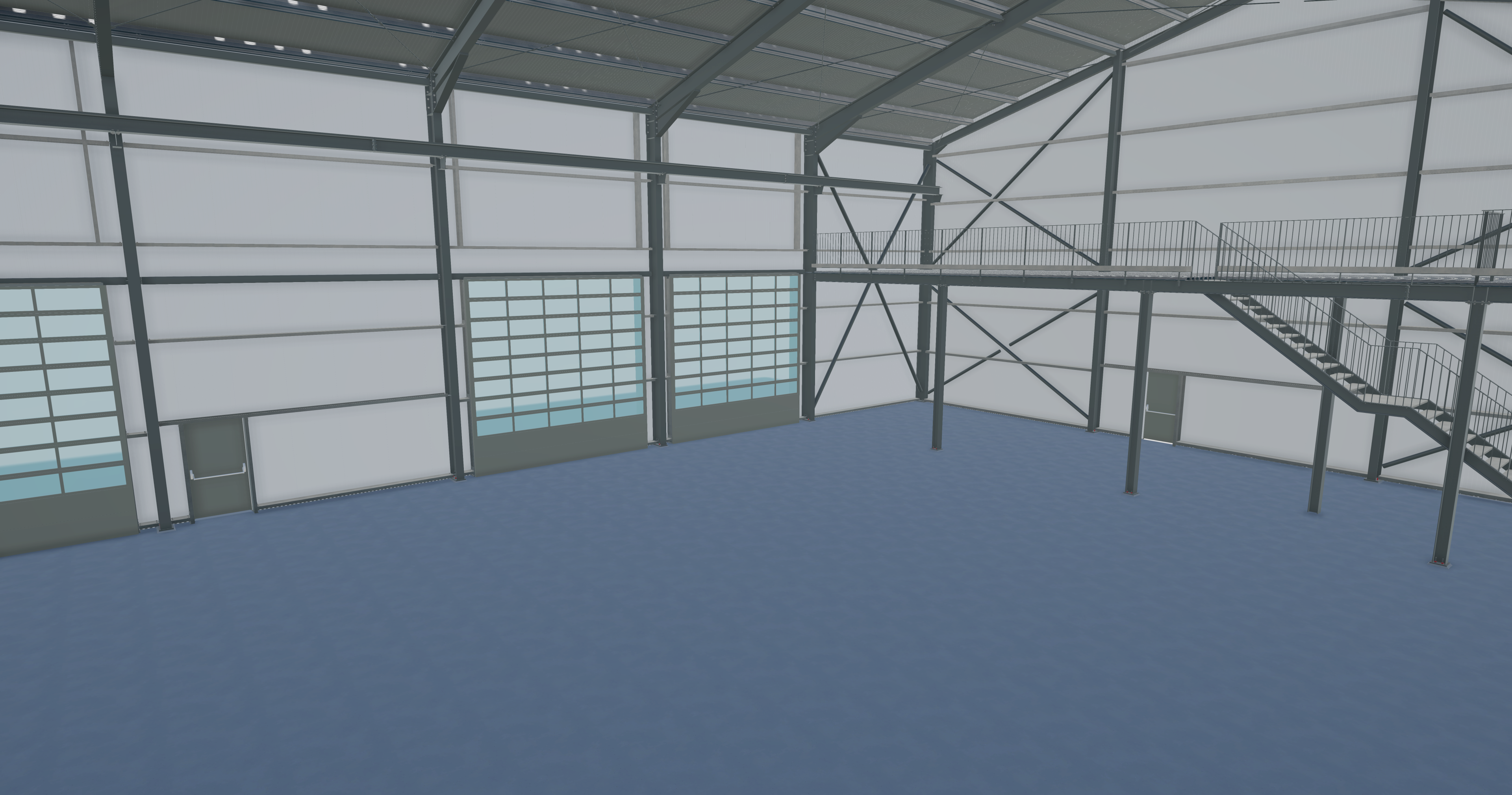

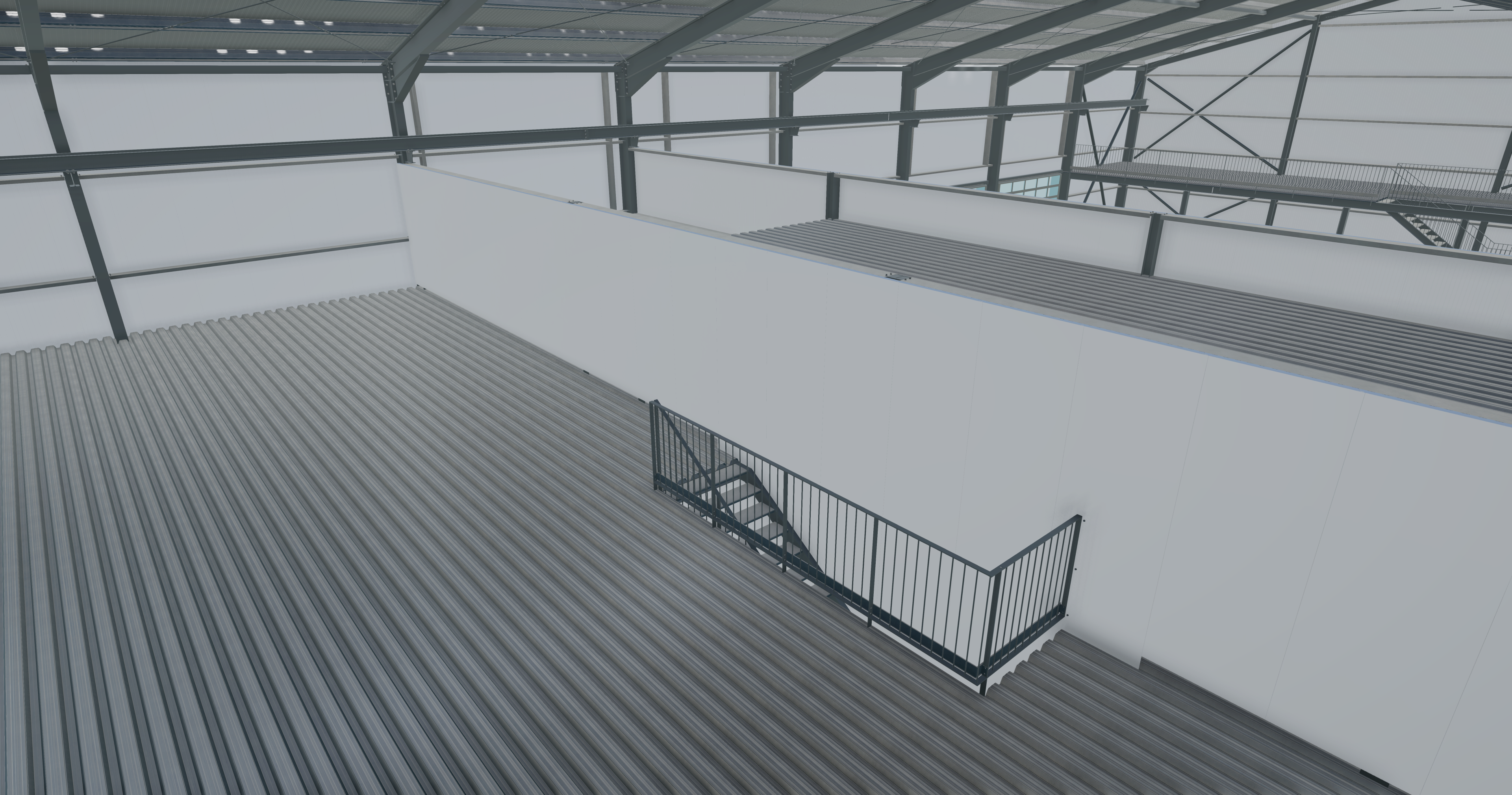

Estrutura metálica (pavilhão industrial) situado na Suiça, mais propriamente em Cressier para posterior arrendamento de diversas industrias.
São 130 toneladas de aço, e 2050m2 área coberta em painel de 150mm espessura.
Metal structure (industrial building) located in Switzerland, more specifically in Cressier, for later leasing to various industries.
It has 130 tons of steel and 2050m2 of covered area in 150mm thick panels.
1747217967__EX-01-R2 - Planta de implantação.pdf - pdf
1747217968__EX-02-R0 - 3D ESTRUTURAL_1.pdf - pdf
1747217971__EX-04-R0 - 3D GUARDAS.pdf - pdf
1747217972__EX-03-R0 - 3D ESTRUTURAL_2.pdf - pdf
1747217975__EX-05-R0 - MADRES + CANTONEIRAS.pdf - pdf
1747217975__EX-06-R0 - PEDIDO PORTÕES SECCIONADOS.pdf - pdf
1747217978__EX-08-R0 - Implantação Caleiros.pdf - pdf
1747217978__EX-07-R0 - PEDIDO PORTAS ASTURMADI.pdf - pdf
1747217981__EX-09-R1 - PAINEL + REMATES + COLABORANTE.pdf - pdf
