Category Small Scale Projects
Year 2017
Country Poland
Organization BKE Sp. z o.o. Sp. kom.
Author Karol Rybak
Client Forum Gdańsk Sp. z o.o.
Place of construction Gdańsk, Polska
Tags

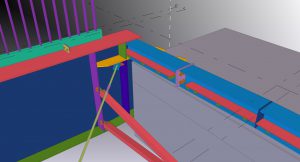

Kładka M.0.07 należy do części zespołu budynków biurowych Forum Gdańsk budowanego w Gdańsku, zlokalizowany przy Okopowej, Hucisko, Targ Sienny, Targ Rakowy. Projekt kładki M.0.07 poruszył wiele ciekawych zagadnień. Półki i środnik głównej blachownicy zmieniają swoją grubość na długości kładki. Belki poprzeczne, jak i blachownice mają zaimplementowane przeciwstrzałki, co w przypadku blachownicy skutkowało tworzeniem elementu wygiętego.

The M.0.07 footbridge belongs to the Gdansk Forum office building complex, which is located in Okopowa, Hucisko, Sienna Market and the Rakow Market. The M.0.07 footbridge project touched upon many interesting issues. The flenges and web of the main beams are changing their thickness along the length of the footbridge. Secondary beams and main beam have anti-deflection implemented, which in the case of main beam results is a bent element.
