DIN Forsyning A/S – Fliskedel – Jorton

Construsoftbimawards - DIN Forsyning A/S – Fliskedel – Jorton
Kategória Ipari projektek
Év 2022
Ország Poland
Szervezet Give Steel
Szerző Give Steel
Az építmény helye Esbjerg
Tags

Model 740-tonowej konstrukcji stalowej dla duńskiego inwestora Jorton A/S został przygotowany w ekspresowym tempie – 6 tygodni.
Design Deaprtment pracował na podstawie dokumentacji przygotowanej przez zewnętrzne biuro konstrukcyjne i optymalizował projekt pod kątem rozwiązań, których wykonanie będzie jak najbardziej efektywne pod kątem produkcji oraz montażu.
13-fazowy projekt koordynowaliśmy przy użyciu Trimble Connect, gdzie sporządzono ponad 230 „todos” czyli zadań do wykonania.
Montaż przebiegał w wyjątkowy sposób. Równocześnie przez dach wprowadzane były urządzenia produkcyjne do stawianej konstrukcji. Z tego względu musieliśmy zaprojektować obiekt tak, by przewidzieć w nim wolne obszary, które po zakończeniu montażu urządzeń – zostały uzupełnione konstrukcją stalową.
Konstrukcję można podziwiać w miejscowości Esbjerg – największym duńskim porcie nad Morzem Północnym.

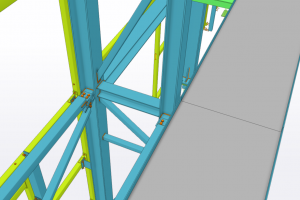

A model of 740-ton steel structure for a Danish investor Jorton A/S has been prepared and released to production in just 6 weeks.
Design Department used documentation delivered by an external consultant and optimized it in a way that the production and montage of elements were as efficient as possible.
For coordination of this 13 – phase project Trimble Connect has been used and more than 230 “todos” have been created.

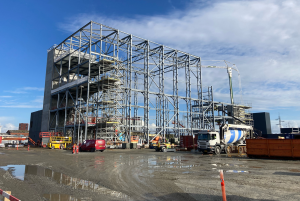

The assembly was carried out in a unique way. The installation of equipment was simultaneous with the installation of the steel construction. For this reason, we had to design the roof with free areas, which could be filled by steel construction after devices installation.
The construction is in the largest Danish port on the North Sea – Esbjerd (Dania).
