Lodivadlo – Boatheatre

Construsoftbimawards - Lodivadlo – Boatheatre
Kategória Kis méretű projektek
Év 2020
Ország Czech Republic
Szervezet Skála & Vít s.r.o.
Szerző Ing. Vladimír Ferkl
Társszerzők Lukáš Suchánek, Tomáš Ehl; Architekti: MEETPLACE s.r.o.
Ügyfél Lodivadlo – Boatheatre, z.s.
Az építmény helye Hradec Králové
Tags

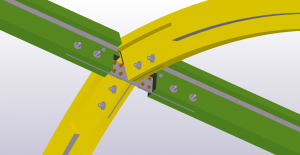

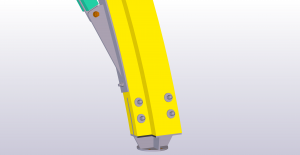

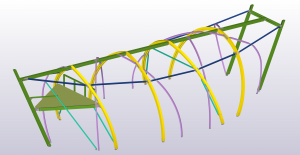

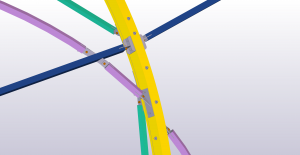

Konstrukce dočasného zastřešení ve tvaru lodi je tvořena čtyřmi příčnými obloukovými rámy s různou geometrií z lepeného dřeva. Ty jsou propojeny vrcholovým dřevěným trámem a soustavou obloukových a přímých ocelových ztužidel. Tři rámy jsou odkloněny ze svislé roviny o 15°, příď je tvořena jedním šikmým dřevěným sloupem a záď dvěma. V prostoru přídě mezi sloupem a prvním rámem je vloženo dřevěné patro. V prostoru zádi je navržena nezávislá konstrukce šatny z ocelových tenkostěnných profilů. Konstrukci je také možno smontovat pouze částečně, záďové sloupy a dva navazující oblouky.

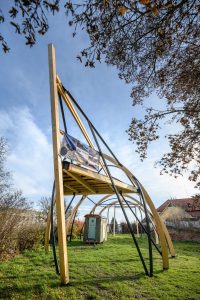

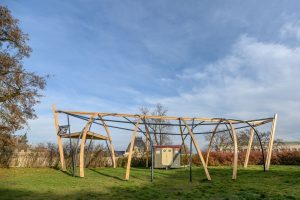

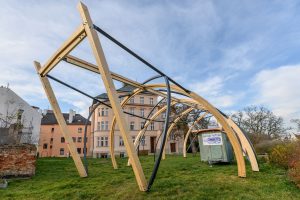

The wooden structure of the temporary roofing in the shape of a ship consists of four transverse curved frames with different geometries. The frames are connected at the top by wooden beam and by the system of curved and straight steel bracings. The three frames are inclined from the vertical plane with an angle of 15 °. The bow of the ship is formed by one inclined wooden column. The stern of the ship by two inclined wooden columns. At the space of the bow in between the first column and the first frame, there is inserted wooden floor. The separated structure of the cloakroom made of thin-walled steel is situated at the space of the stern. The structure can also be assembled only partially using two stern columns and two adjoining curved frames.
