ALFAGEN – D.02 NOVÁ HALA TAO

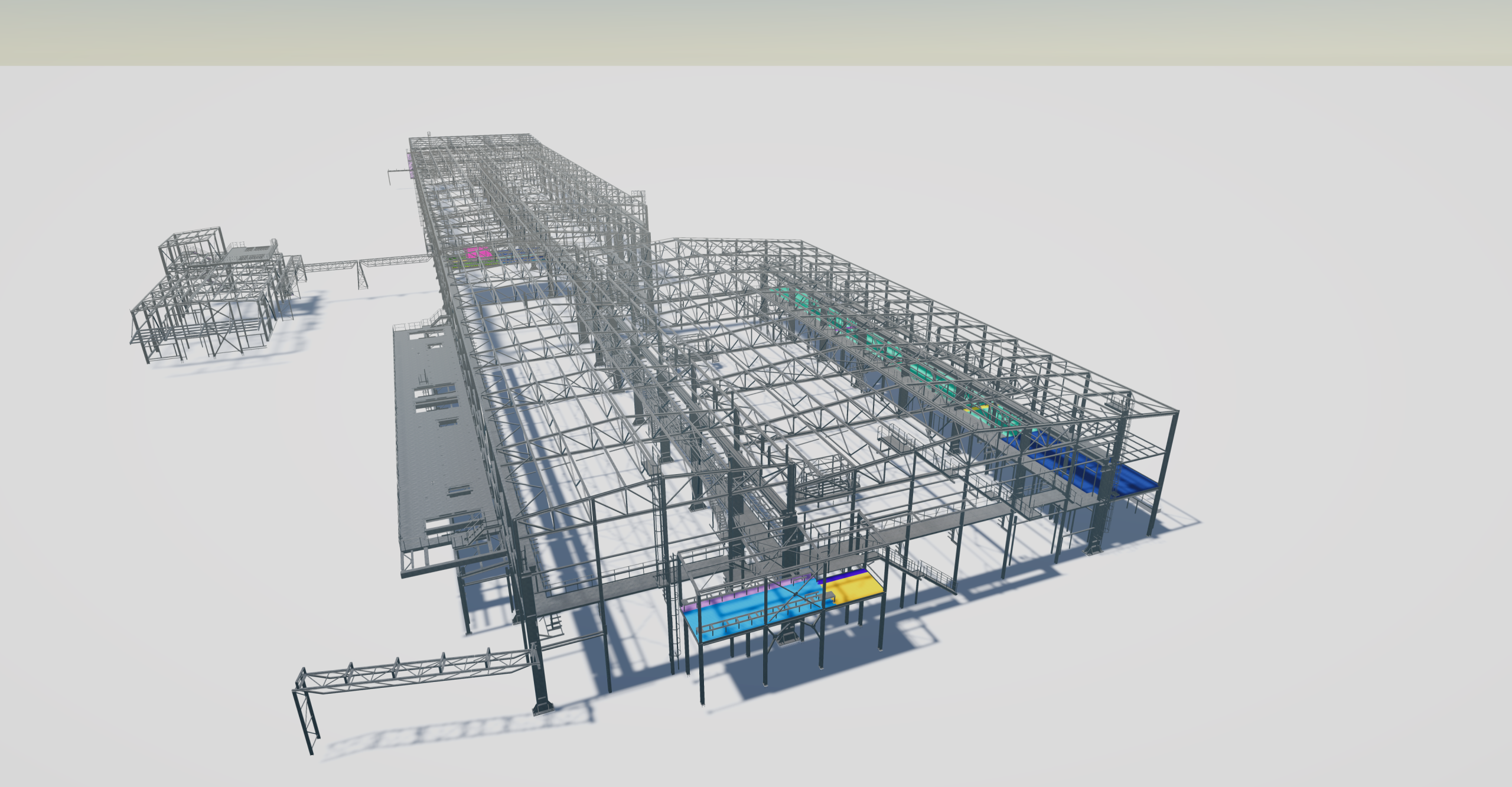

The new TaO hall is located on the site of the removed coal storage, boiler house, and incinerator facilities within the AL INVEST Břidličná, a.s. complex. It features an irregular, structured rectangular footprint with maximum external dimensions of approximately 285.68 x 67.58 m, a built-up area of 13,950.8 m², and a volume of 26,727.8 m³.

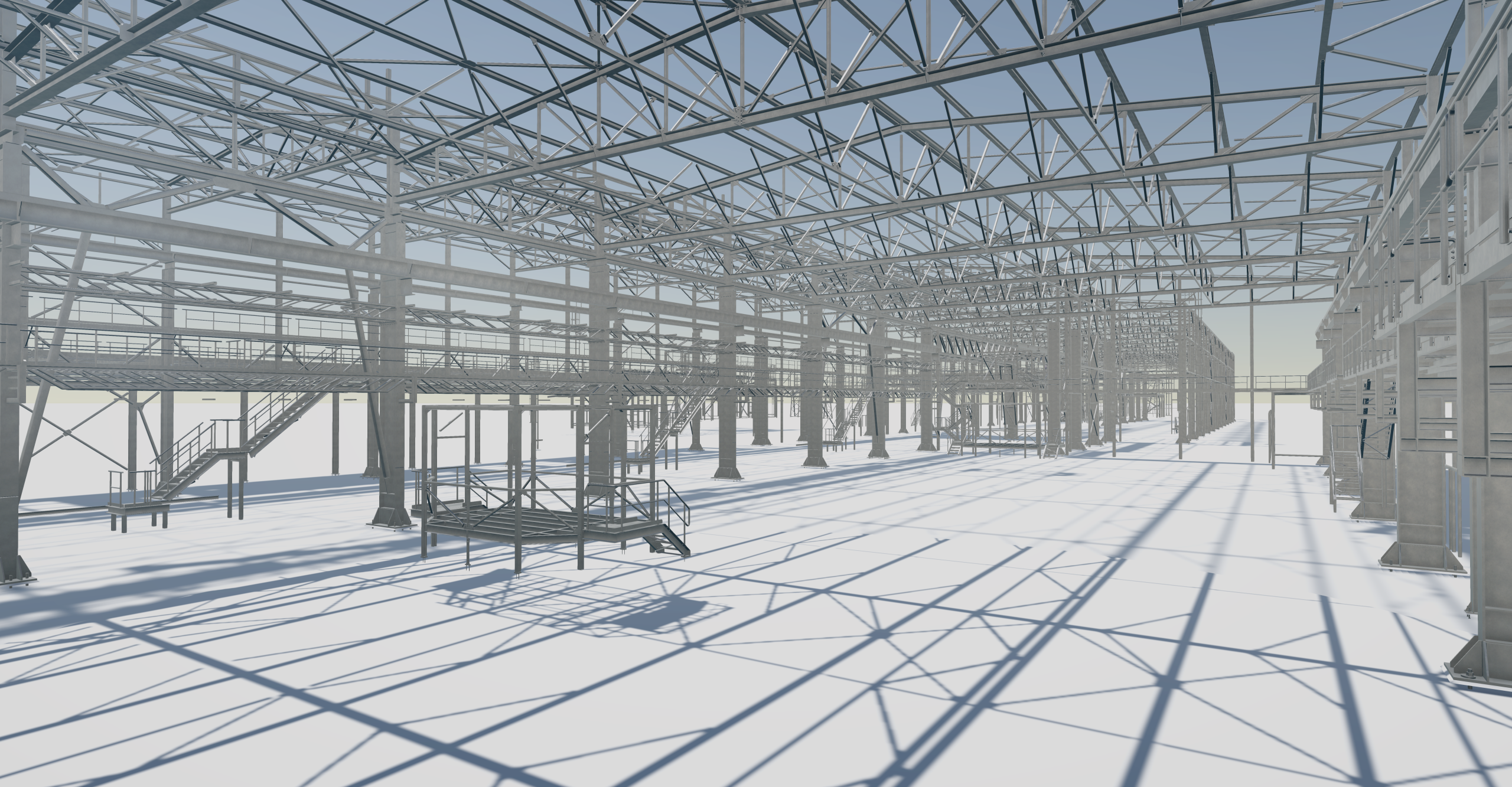

The building has no basement and consists of one above-ground floor, including multi-level internal structures (built-ins) at levels +5.200 m, +6,000 m, and +8,000 m. These will be addressed in a subsequent phase of the project and will be accessible via internal steel staircases and platforms at the respective levels. The building is covered by a series of mono-pitched and gable roofs with a 10% slope, with a maximum ridge height of approximately 19.28 m from the project zero point (defined as the hall floor level and the adjacent finished grade). The roofing consists of asphalt membranes over mineral insulation on trapezoidal steel sheeting.

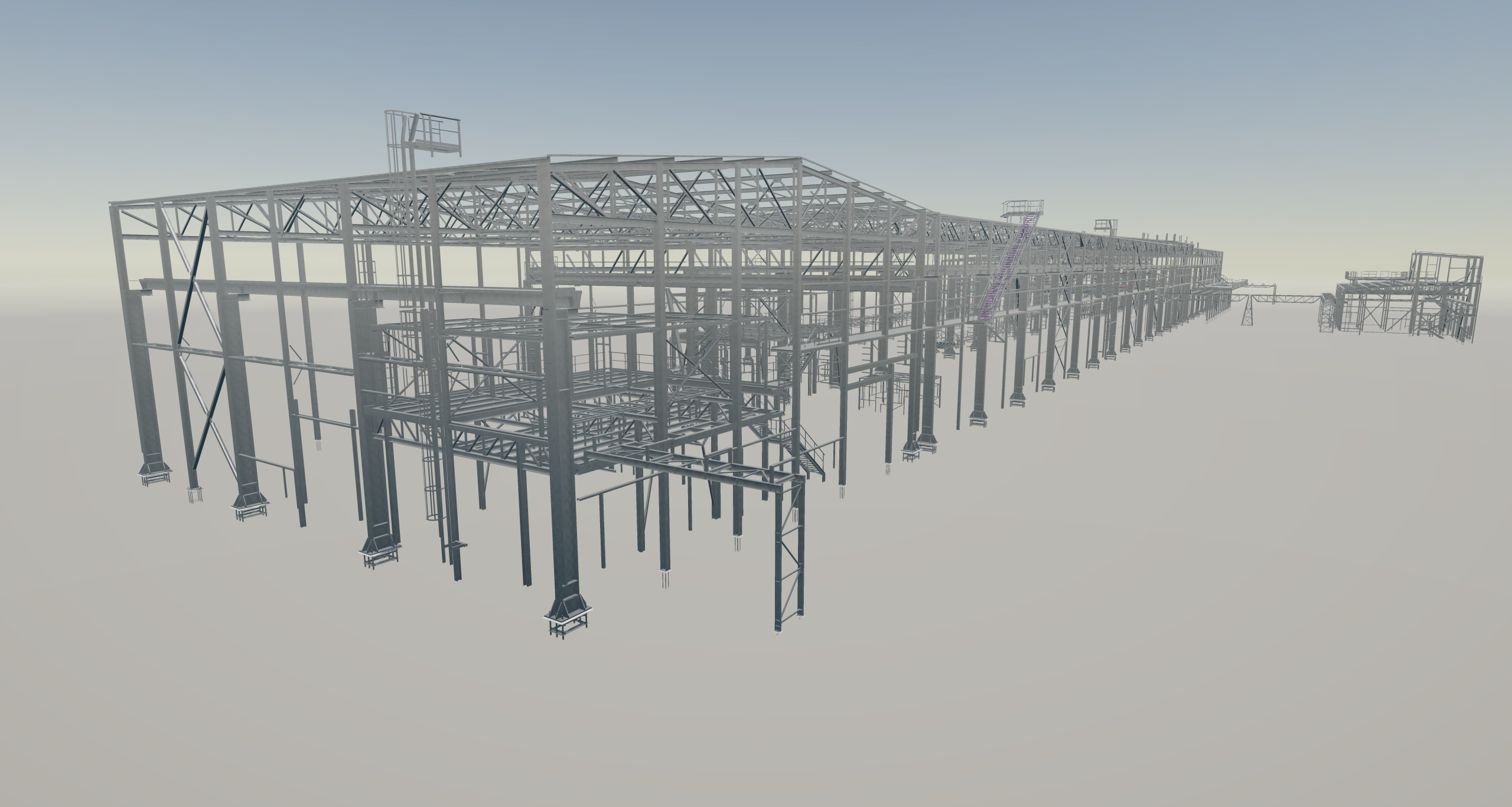

Material-wise, the structure is a steel skeleton clad with a lightweight curtain wall – horizontally laid sandwich panels with a mineral core. The surface consists of profiled steel sheeting: the exterior in grey RAL 9007 and the interior in white RAL 9010. It also features a cassette wall system composed of cassettes, mineral insulation, and vertically laid trapezoidal sheeting in a grey finish, color RAL 9007.
