KTW II

Construsoftbimawards - KTW II
Category Commercial Projects
Year 2021
Country Poland
Organization T-Structures
Author Marek Tokarski
Client Welding Masters
Place of construction Katowice
Tags

KTW II to inwestycja zlokalizowana w Katowicach przy alei Roździeńskiego. Tematem opracowania, wykonanym w programie TEKLA, był projekt warsztatowy konstrukcji stalowej dla dwóch najwyższych pięter oraz części serwisowej i instalacyjnej budynku. Do stworzenia modelu użyto ponad 300 tys. elementów takich jak: elementy pojedyncze, śruby, spoiny, punkty i komponenty. Nowoczesna forma obiektu została zaprojektowana przez biuro architektoniczne Medusa Group i była naturalną kontynuacją istniejącej części KTW I. Autorem konstrukcji było biuro inżynierskie Statyk.

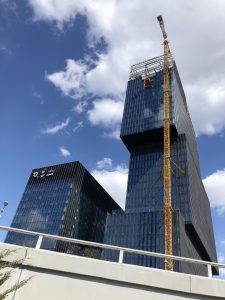

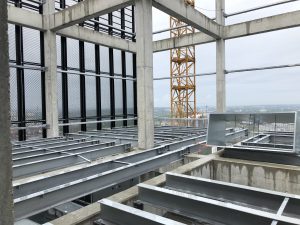

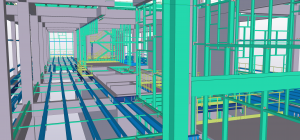

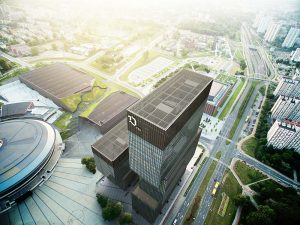

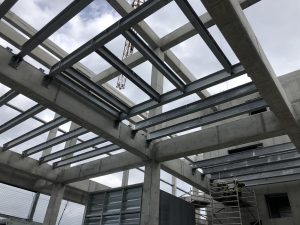

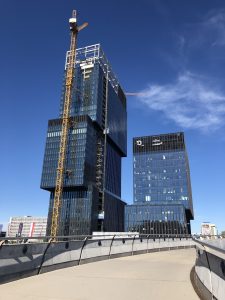

KTW II is an investment located in Katowice at Aleja Roździeńskiego. The subject of the study, prepared in the TEKLA program, was a workshop design of a steel structure for the two top floors and a service and installation part of the building. More than 300,000 elements were used to create the model such as: single parts, bolts, welds, points and components. The modern form of the facility was designed by Medusa Group architectural office and was a natural continuation of the existing part of KTW I. The author of the structure design was Statyk engineering office.
