PUENTE LOS ENCUENTROS
| Category | Infrastructure Projects |
|---|---|
| Year | 2021 |
| Country | Ecuador |
| Organization | KUBIEC |
| Author | EFREN TENESACA/ HENRY VILLON |
| Client | GAD ZAMORA CHIMCHIPE |
| Place of construction | GUAYAQUIL - ECUADOR |

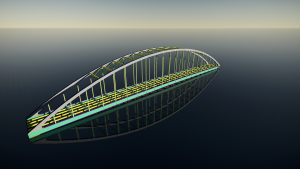

Puente en arco con tablero inferior de una luz de 120m aproximadamente que cruza el rio Zamora. Tiene un peso estimado de 370 toneladas. El arco esta formado por vigas de sección cajón y con vigas de rigidez tipo “I”.

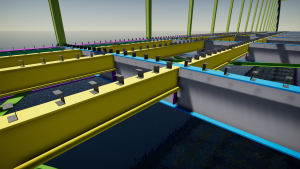

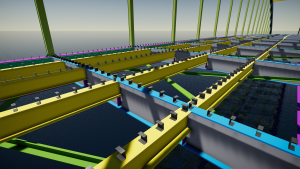

Arched bridge with lower board of a light of approximately 120m that crosses the Zamora river. It has an estimated weight of 370 tons. The arch consists of drawer section beams and type “I” stiffness beams.
