Soccer FC DAC Arena

Construsoftbimawards - Soccer FC DAC Arena
Category Sport a rekreace
Year 2017
Country Czech Republic
Organization HESCON s.r.o.
Author ARCHITEKTONICKÝ NÁVRH A VIZUALIZACE: Adif Dunajská Streda
Place of construction Dunajská Streda

Projekt nového fotbalového stadionu s částečnou rekonstrukcí již existující zástavby. Nový stadion se nachází na Slovensku ve městě Dunajská Streda a bude tvořit nové zázemí pro fotbalový klub FC DAC. Stavba započala na jaře 2016 a dokončena by měla být kompletně v roce 2018. Maximální kapacita stadionu je 13.000 diváků. Základy a hlavní budova je tvořena z prefabrikátů, konstrukce střechy a opláštění betonových částí pak z oceli. Stadion splňuje UEFA limity pro pořádání zápasů čtvrté kategorie. Model a výstupní dokumentace byla tvořena v programech Tekla Structures a Allplan.

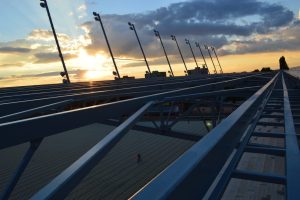

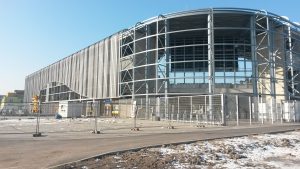

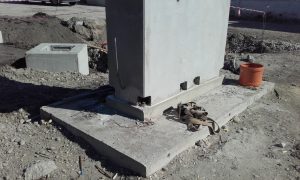

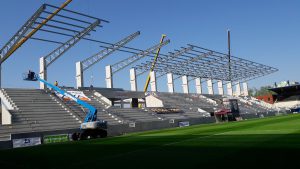

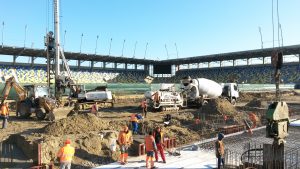

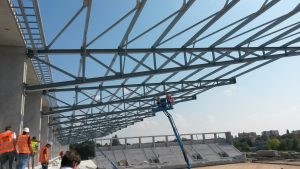

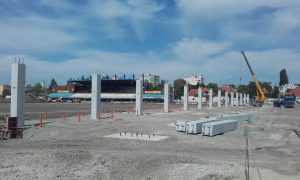

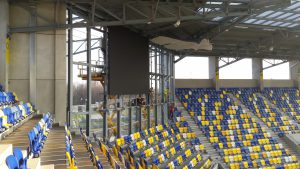

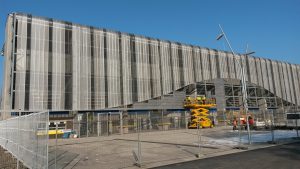

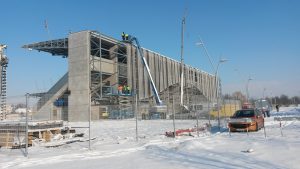

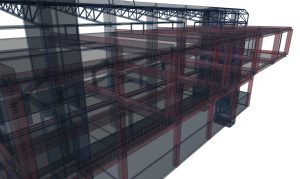

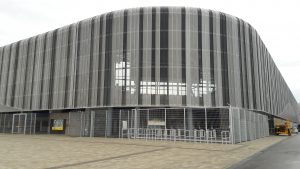

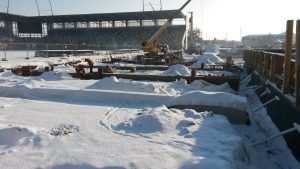

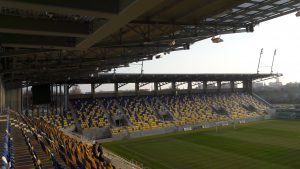

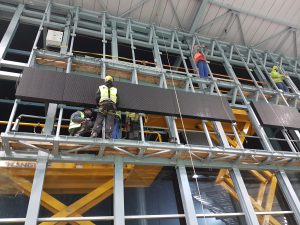

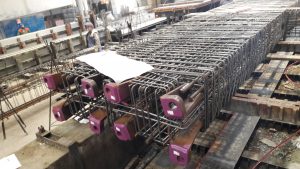

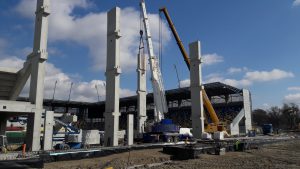

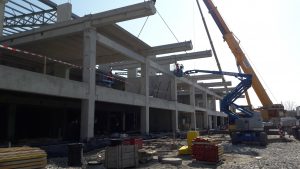

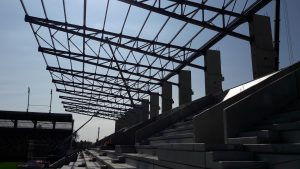

This is a project of a new football stadium in the construction phase with a partial reconstruction of the existing stadium. The new football stadium will be located on the site of the current stadium FC DAC and its construction has started in the spring of 2016 with the first phase (stand B and C) and the entire complex should be finished in 2018. The first phase is currently finished. The construction work on the second stage is underway. The total capacity is 13,000 spectators. DAC arena will meet UEFA regulations for stadiums fourth category. The main structure of stands and the main building is made of prefabricated reinforced concrete structures, construction of roof, facade and secondary structures are designed of steel elements. The length of stand C is 122.4 m and stand B is 82 m and the width is 18.45 m. To create global static model, we used the Scia Engineer where models were created for the static design and design review. As part of the analysis in Scia Engineer we check in addition to normative loads and effects, dynamic effects, fire resistance and overall behavior of the structure. Afterwards we created the detailed design of reinforcement of concrete elements and checked them for both limit states. Steel components have been checked for both limit states too. The workshop documentation was created in Allplan and Tekla structures software.
