Swede Ship Marine

Construsoftbimawards - Swede Ship Marine
Category Small Scale Projects
Year 2022
Country Poland
Organization Give Steel
Author Give Steel
Place of construction Tjörn
Tags

Ta stosunkowo niewielka hala o wymiarach 30 m x 12 m, wysokości 13.5 m oraz wadze około 30 ton projektowana była z myślą o łodziach i ich serwisowaniu. Nasi designerzy uwzględnili podczas modelowania m.in. pracę dużej suwnicy, dlatego projekt i jego przeznaczenie zaskakuje swoją smukłą i pozornie lekką konstrukcją. Ciekawy element stanowią również ukośne stężenia oraz brama, która zasługiwała na uwagę naszego BIM inżyniera. Halę można oglądać na wyspie Tjörn, przy wschodnim wybrzeżu Szwecji.

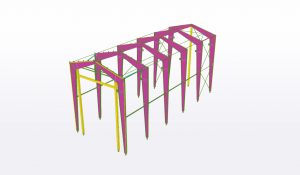

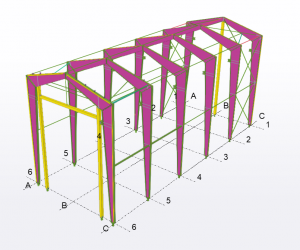

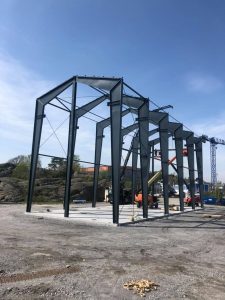

This relatively small hall, 30 m x 12 m, 13.5 m high, and weighing about 30 tons, was designed for boats and their servicing. During the design works our team had taken into account the montage of a large crane too. The project and its purpose surprises its slim and light structure, which was reached by the optimization. An interesting element are also the diagonal braces and the gate. The hall is located on island Tjörn, around the eastern part of Sweden.
